rodeo-cli — Architecture & design

Technical reference for contributors and maintainers. For deploying a workshop, see User guide.

Version: 0.14.2 License: Apache-2.0

What rodeo-cli is

rodeo-cli deploys the infrastructure for a rodeo: a live, hands-on workshop where attendees work against real systems. It builds a lab of nested KVM VMs on a single Linux host, driven by a declarative plan — you pick a profile, it converges the host.

The stack it builds depends on the chosen engine type (see Engine types & profiles):

  • suse-virt — a 3-node Harvester HCI cluster (+ optional Rancher Prime)
  • rancher — a single VM running Rancher Prime on K3s
  • suse-edge — Rancher Prime + Elemental + Edge Image Builder + edge nodes

Every profile shares the same foundation: host networking, firewalld DNAT, DNS, storage, and phase orchestration on nested KVM/libvirt. The tool runs on cloud instances, Instruqt builder VMs, local VMs, or bare metal — anywhere you have KVM and enough RAM/disk.

Design goals

Goal How it is met
Declarative lab definition rodeo-plan.yaml + secrets + -P / --paramfile
Plan before apply rodeo plan (read-only diff vs host)
Safe resume Per-plan state, --from PHASE, --force
One orchestrator DeployRunner — no duplicated TUI/plain/bash paths
Host setup is idempotent Ansible roles kvm_host + vms + pxe_server
Long waits are cancellable threading.Event + process groups in poll loops
Instruqt-safe builds deployment_target: instruqt skips finalise; hostimage boot uses start-if-needed
Self-contained install Ansible roles bundled in rodeo/data/ansible/
Minimal first-phase friction scripts/bootstrap-sles.sh (curl
Graceful stop/restart + host reset rodeo stop/start (infra-aware from definition: infra_type, components, start_order; graceful ACPI + host services; restartable). clean --all --hard --secrets --force-network for full reset (VMs/networks/states/passwords; no package removal). Clean runs stop first unless --hard.
Interactive definition generation rodeo generate (templates base via parameter collection for hybrid customization, produces full config-dir yaml skeleton with project conventions like infra_type; post-validation via load_config; next steps for bootstrap/deploy/stop/start/clean lifecycle). Enables consistent entry to declarative model (definition as source for inventory/renderer/phases).

Vision (roadmap): Terraform-for-labs — declare desired state, preview diff, converge, destroy what you own. See ROADMAP.md.

Two-dimension model

rodeo-cli has two independent axes that combine to produce a lab deployment:

Tech platform  ×  Host context  =  lab deployment

suse-edge          baremetal        SUSE Edge 3.6 on bare metal KVM
suse-edge          instruqt         SUSE Edge 3.6 on Instruqt KVM
suse-virt          instruqt         SUSE Virtualization on Instruqt KVM
rancher            aws              Rancher on an AWS EC2 KVM host

Tech platform — what lab topology and software stack to deploy. Encoded in rodeo/profiles/<name>.py + data/platforms/<name>/definition.yaml. Platform code is host-agnostic; the same profile works on any host context.

Host context — where the KVM host runs and what that implies for host-level setup. Encoded in deployment_target in rodeo-plan.yaml. Affects: guarded phases, firewall/DNAT configuration, external IP detection, success screen output. The underlying infrastructure is always KVM/libvirt regardless of host context.

deployment_target Host type Key differences
baremetal Linux bare metal with KVM full firewalld + DNAT
instruqt Instruqt managed KVM builder finalise phase guarded; Instruqt-aware networking
aws Laptop provisions EC2; lab runs on the instance as baremetal shared provider: + rodeo destroy --cloud
gcp (planned) GCP instance with KVM external IP via GCE metadata; VPC firewall rules

Adding a new host context requires four touch points: config.py allowed list, up_cmd.py auto-detection, runner.py vars file, success.py output. See the Extension points table below.

Engine types & profiles

Two terms that sound alike but are different:

  • Engine type — the deploy pipeline: which phases run and how. Code lives in rodeo/profiles/<name>.py (a RodeoProfile subclass) + data/platforms/<name>/definition.yaml. There are three today.
  • Profile (--profile) — a named, runnable lab (a config-dir, bundled or under ~/.rodeo/profiles/). Each profile picks one engine type. There are six bundled ones.

Since PR #4 the three profile classes are thin: RodeoProfile (profiles/base.py) owns config assembly (default_cfg() — loads the definition with a static fallback) and phase dispatch (a table-driven run_phase() with a no-Rancher skip guard). Each subclass carries only its data and deltas — static_vms, resources, versions, and small hooks like extra_cfg() / _default_user().

The three engine types

Engine type Phase pipeline Boot method Stack
suse-virt kvm_host → vms → pxe_server → cluster → rancher → apply → finalise iPXE network install (UEFI) Harvester HCI cluster (+ optional Rancher Prime)
rancher kvm_host → vms → boot → rancher → apply → finalise cloud-init image 1 VM: Rancher Prime on K3s
suse-edge kvm_host → vms → boot → rancher → elemental → apply → finalise cloud-init image Rancher Prime + Elemental Operator + EIB + edge nodes

The Harvester path is the outlier: it needs pxe_server (iPXE/TFTP/HTTP) and a cluster phase that network-installs each node and waits for the VIP. The cloud-image profiles skip both — a single boot phase starts the network and VMs directly. suse-edge adds one phase, elemental, which installs the Elemental Operator after Rancher so edge nodes can register over TPM. rancher/elemental phases are skipped automatically when a topology has no Rancher node.

Bundled profiles

Profile Engine type Topology
rancher rancher 1 VM: Rancher Prime on K3s
test suse-virt 2-node Harvester, no Rancher
harvester-ha suse-virt 3-node Harvester, no Rancher (etcd HA)
harvester-2n suse-virt 2-node Harvester + Rancher Prime
harvester suse-virt 3-node Harvester HCI + Rancher Prime
suse-edge suse-edge Rancher + Elemental + EIB + 4 edge nodes (SUSE Edge 3.6)

Per-profile topology tables (VMs, IPs, RAM) live in each deployment guide. The detailed suse-virt topology and iPXE boot chain are documented below as the reference implementation.

High-level architecture

┌─────────────────────────────────────────────────────────────┐
│  CLI (click)                                                │
│  init · plan · deploy · status · clean · ssh · logs · …     │
└──────────────────────────┬──────────────────────────────────┘
                           │ load_config() + validate_config()
                           ▼
┌─────────────────────────────────────────────────────────────┐
│  Profile (e.g. SuseVirtProfile)                             │
│  phases · vm_names · guarded_phases · run_phase()           │
└──────────────────────────┬──────────────────────────────────┘
                           │
                           ▼
┌─────────────────────────────────────────────────────────────┐
│  DeployRunner.run() → Iterator[DeployEvent]                 │
│  PhaseStarted · LogLine · ProgressUpdate · PhaseDone · …    │
└───────┬─────────────────────────────┬───────────────────────┘
        │                             │
        ▼                             ▼
┌───────────────────┐       ┌─────────────────────────────┐
│ Ansible phases    │       │ Python phases (per profile) │
│ kvm_host, vms,    │       │ boot · cluster · rancher ·  │
│ pxe_server        │       │ elemental · apply · finalise│
│ ansible-playbook  │       │ ClusterPhase · RancherPhase │
│ -e @vars-file     │       │ LibvirtDriver               │
└───────────────────┘       └─────────────────────────────┘
        │                             │
        ▼                             ▼
┌─────────────────────────────────────────────────────────────┐
│  KVM host (SLES 16 / Leap / Ubuntu / Fedora)                │
│  libvirt · firewalld · virbr0 · 4 nested VMs                │
└─────────────────────────────────────────────────────────────┘

Consumers of the event stream:

  • rodeo/app.py — Textual TUI (DeployPanel + LogsPanel)
  • rodeo/commands/deploy.py — Rich plain output

Neither contains pipeline logic. Both subscribe to the same DeployRunner generator.

Why Ansible and Python (not one or the other)

Layer Tool Rationale
Host packages, systemd, firewalld, sysctl Ansible Declarative idempotency; SLES 16 edge cases already encoded in roles
VM disks, ISOs, XML, cloud-init, network XML Ansible Template + file generation; community.libvirt modules
iPXE boot server (nginx, dnsmasq, boot files) Ansible pxe_server role; two-stage UEFI → TFTP → HTTP
VM start order, VIP poll, kubeconfig, nodes Ready Python 20–90 minute waits, progress UX, cancellation
K3s, Rancher API, cluster import Python Procedural API sequence; structured errors
Runtime VM ops (status, clean, restart) libvirt-python Direct API; avoids virsh where possible

Bash deploy scripts (start-vms.sh, setup-rancher.sh, deploy.sh) were retired in v0.3. Logic lives in engine/cluster.py and engine/rancher.py.

Do not replace Ansible roles with Python without a live KVM regression. The fragile Instruqt boot-order behavior is in the roles.

Repository layout

rodeo/
├── cli.py                 Click entry; ConfigError handler
├── config.py              Plan load, Jinja, -P/--paramfile, secrets, validation
├── state.py               ~/.rodeo/state/<plan-name>.yaml (profiles own phase lists; `reset_from` requires phases arg)
├── ssh.py                 Shared SSH opts + helpers (used by engine + commands)
├── app.py                 Textual TUI (event subscriber only)
├── engine/
│   ├── runner.py          DeployRunner, vars file, phase dispatch helpers
│   ├── cluster.py         ClusterPhase
│   ├── rancher.py         RancherPhase
│   └── libvirt.py         LibvirtDriver
├── profiles/
│   ├── base.py            RodeoProfile — shared config assembly + phase dispatch
│   ├── rancher.py         Rancher Prime on K3s (1 VM)
│   ├── suse_virt.py       Harvester HCI + Rancher (default workshop profile)
│   └── suse_edge.py       SUSE Edge 3.6 (Rancher + Elemental + EIB + edge nodes)
├── commands/              Thin CLI wrappers
├── service/               JSON report helpers (doctor, status) for CLI + fleet
├── fleet/                 Laptop→host workshop fan-out (OpenSSH; see docs/fleet.md)
├── widgets/               TUI panels
└── data/
    ├── platforms/         definition.yaml per tech platform (suse-virt, suse-edge, rancher)
    ├── ansible/           kvm_host + vms + pxe_server roles (bundled)
    ├── examples/          reference rodeo-plan.yaml per platform (not workshop content)
    ├── deployer/          inventory.local + legacy examples
    └── templates/         init templates

tests/                     pytest (config, runner, cluster, ansible contract, fleet, …)
docs/                      architecture.md, get-started.md, fleet.md, …

Deployment pipeline

Each engine type runs a subset of the phase catalog below, in the order given by its profile's phases list (see Engine types & profiles). State is per plan name (cfg["name"]). The dispatch is generic: RodeoProfile.run_phase() sends Ansible phases to stream_ansible and the rest through a phase → DeployRunner method table.

Phase Engine Used by Summary
kvm_host Ansible all KVM packages, modular libvirt, NM unmanaged conf, firewalld rules (not started), storage pool, sysctl
vms Ansible all Download ISOs/images, virbr0 + DHCP leases, qcow2 disks, config ISOs, define domains (not start); disk-first boot order
pxe_server Ansible suse-virt nginx on virbr0:8080, ipxe.efi TFTP, vmlinuz/initrd/rootfs, per-node iPXE scripts + config YAMLs, dnsmasq two-stage boot
boot DeployRunner rancher, suse-edge Start virbr0 + cloud-image VMs directly (no iPXE); wait for IPs
cluster ClusterPhase suse-virt firewalld on; virbr0 up; start h1 → VIP → h2 → 90s → h3 → rancher; kubeconfig; 3 nodes Ready
rancher RancherPhase all K3s, Helm, cert-manager, Rancher Prime, admin API. Skipped if no Rancher node. Harvester import is a lab exercise.
elemental RancherPhase._install_elemental suse-edge Install Elemental Operator (CRDs + operator) so edge nodes register over TPM
apply DeployRunner all Apply extra manifests (Fleet GitOps, demo workloads); never cached, re-runs each up
finalise DeployRunner all VM autostart + libvirt-guests enable

The suse-virt pipeline (the widest) is the reference implementation detailed in the sections below. rancher and suse-edge swap the pxe_server/cluster pair for a single boot phase on cloud images; suse-edge adds elemental.

Timeouts (nested KVM): VIP ≤ 60 min, kubeconfig ≤ 30 min, nodes Ready ≤ 90 min.

Instruqt guard: finalise is in guarded_phases. Skipped when deployment_target: instruqt unless --finalise. Do not bake finalise into a hostimage (agent / boot hang); use rodeo start-if-needed on track setup. See docs/examples/instruqt.md.

Configuration system

Precedence (lowest → highest)

  1. _BASE_DEFAULTS in config.py
  2. Profile default_cfg() (e.g. SuseVirtProfile)
  3. rodeo-plan.yaml (Jinja-rendered if templated)
  4. --paramfile (deep merge, tfvars-style)
  5. -P dotted.path=value (CLI overrides)

Jinja plans

parameters:
  memory: 16384
resources:
  harvester:
    memory_mib: {{ memory }}

StrictUndefined — missing parameters fail at load time, not mid-deploy.

Secrets (?? placeholders)

Resolved at load time from ~/.rodeo/secrets.yaml, ??env:, ??file:, or ??cmd:. validate_config() fails closed on unresolved or empty credentials. (Note: rodeo generate now guards the global secrets file with exists check + warning to avoid silent clobber.)

Passwords go to Ansible via a mode-600 vars file (-e @file), never on argv. Password-bearing Ansible template tasks use no_log: true.

Ansible vars file (DeployRunner._write_vars_file)

Generated per deploy. Keys Ansible actually consumes:

  • libvirt_flavors (nested — matches vm.xml.j2, images.yml)
  • lab_dns_domain (not dns_domain)
  • harvester_version, harvester_iso_checksum (version-keyed map)
  • network, passwords, image_dir, optional harvester_token

State

~/.rodeo/state/<plan-name>.yaml — phase completion, timestamps, last_error. chmod 600.

  • rodeo deploy skips completed phases
  • rodeo deploy --from PHASE clears that phase and later
  • rodeo deploy --force ignores state

Event model

DeployRunner.run() yields:
  PhaseStarted(phase)
  PhaseSkipped(phase, reason)   # "done" | "before_start" | "instruqt"
  LogLine(line)
  ProgressUpdate(step, elapsed, total, detail)
  PhaseDone(phase, elapsed)
  PhaseFailed(phase, rc, message)
  DeployComplete()

Failure semantics:

  • Exceptions in profile.run_phase() → PhaseFailed, pipeline stops
  • runner.stop checked in all poll loops
  • runner.terminate() SIGTERMs subprocess group (TUI quit → exit 130)
  • Subprocess timeouts in RancherPhase → failed rc, not uncaught exceptions

Workshop topology (suse-virt)

VM Role IP Default RAM
harvester1 Bootstrap (alpha) 192.168.122.11 20 GiB
harvester2 Join (bravo) 192.168.122.12 20 GiB
harvester3 Join (charlie) 192.168.122.13 20 GiB
rancher Rancher Prime / K3s 192.168.122.9 8 GiB
  • VIP: 192.168.122.10 (Harvester API/UI via kube-vip)
  • DNS domain: rodeo.lab (libvirt dnsmasq + /etc/hosts)
  • Host DNAT: :8443 → Harvester VIP :443, :30002 → Rancher NodePort

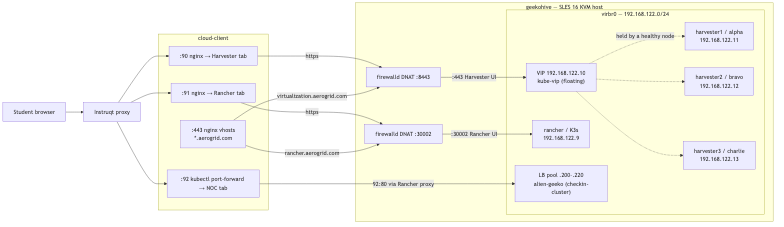

Network and ports (Instruqt → host → nested VMs)

Editable source: assets/diagrams/rodeo-network-ports.mmd

The diagram shows the full path from a student browser through Instruqt cloud-client nginx tabs, host firewalld DNAT on geekohive, and virbr0 guests (VIP, Harvester nodes, Rancher, optional LB pool).

VM IPs/user for Python-side ops (ssh, restart, status, cluster waits) come from profile default_cfg() + plan vms (profile-driven in TUI panels too). Full vm_nodes (MACs/UUIDs/flavors + provisioning) still from roles/vms/defaults/main.yml (Ansible side). Custom topologies / single inventory source on the roadmap (Phase C). TUI LogsPanel and phase focus now derive VM list from cfg/profile instead of hardcodes.

Harvester install via iPXE (not ISO-first boot)

Harvester 1.8.1 requires UEFI; legacy BIOS PXE is not supported. The pxe_server role provisions network boot on virbr0:

UEFI firmware (empty disk, no bootloader)
  → DHCP from dnsmasq on 192.168.122.1
  → Stage 1: boot ipxe.efi (TFTP)                  [dhcp-boot tag:!ipxe]
  → Stage 2: ONE generic boot.ipxe over HTTP       [dhcp-boot tag:ipxe]
  → boot.ipxe chains to the per-node script by MAC: :8080/ipxe/mac-<mac>
  → kernel + initrd + squashfs over HTTP (installer console logged to ttyS1)
  → unattended install (config YAML at :8080/config/config-harvesterN.yaml)

The per-node routing is MAC-based, not per-host dnsmasq tags: libvirt already writes a <host mac=…> for each node's IP, and a second dhcp-host for the same MAC (to set a routing tag) is silently ignored by dnsmasq — so all iPXE clients get one boot.ipxe, which selects the node script by ${net0/mac:hexhyp}.

VM XML boot order is disk first, management NIC second. On first boot the qcow2 is empty, so UEFI falls through to NIC PXE. After install, reboots go straight to disk. ISO CDROMs remain attached as fallback; RancherPhase ejects them once the cluster is up.

On-disk layout after pxe_server:

Path Purpose
/var/lib/libvirt/dnsmasq/ipxe.efi Stage-1 UEFI loader (TFTP)
/srv/harvester-pxe/harvester/ vmlinuz, initrd, rootfs.squashfs, ISO symlink
/srv/harvester-pxe/ipxe/boot.ipxe Generic stage-2 script (chains by MAC)
/srv/harvester-pxe/ipxe/mac-<mac> Per-node iPXE scripts (named by mgmt MAC)
/srv/harvester-pxe/config/config-harvester{N}.yaml CREATE/JOIN Harvester config (0644 so nginx serves it)

Ref: Harvester v1.8 PXE boot install.

SLES 16 / Instruqt constraints (do not break)

Documented in role comments and CONTEXT.md.

  1. NetworkManager only — wicked removed; virbr0/vnet* marked unmanaged
  2. Modular libvirt — disable monolithic libvirtd; enable socket-activated daemons
  3. libvirt-guests off during build — stalls network-online.target on Instruqt save/reboot
  4. virbr0 autostart false until cluster — same boot-order issue
  5. firewalld rules permanent, daemon stopped during Ansible — protects Instruqt mgmt NIC
  6. 90s gap between harvester2 and harvester3 — etcd join race prevention
  7. OVMF 4MB non-SecureBoot — 2MB images gone on SLES 16
  8. xorriso — not genisoimage

Files to treat as fragile:

  • roles/kvm_host/tasks/libvirt.yml
  • roles/vms/tasks/network_setup.yml
  • roles/vms/defaults/main.yml (MACs ↔ DHCP ↔ Harvester config)
  • roles/pxe_server/templates/network-pxe.xml.j2 (two-stage iPXE dnsmasq routing)
  • roles/pxe_server/templates/ipxe-node.j2 (UEFI initrd= kernel arg required)
  • engine/cluster.py (ETCD_JOIN_GAP, virbr0 start before VM boot)

Security model (lab scope)

Single-tenant training lab, not production.

Choice Reason
TLS verify off Self-signed Harvester/Rancher certs
SSH StrictHostKeyChecking=no Ephemeral lab VMs, host key baked in cloud-init
security_driver = "none" Nested KVM on SELinux-enforcing SLES 16
SELinux permissive (kvm_host role) Nested virt lab compatibility
One host ed25519 key in all guests Deployer drives SSH/API setup
DNAT on host Attendees reach UIs via host IP

Protected: secrets in chmod-600 files, no_log on password tasks, random passwords/tokens from rodeo init, fail-closed validation.

Testing & CI

ruff check rodeo tests
pytest tests/ -v
Test area Purpose
test_config.py Merge, Jinja, -P, secret resolvers, validation
test_runner.py Pipeline events, instruqt guard, vars file
test_ansible_consistency.py Profile ↔ Ansible defaults ↔ plan template drift
test_ansible_vars_contract.py Vars file keys match Ansible consumers
test_pxe_integration.py Playbook order, pxe_server role, boot order, JOIN VIP guard
test_cluster.py / test_rancher.py Poll loops, timeouts, parsing
test_plan_cmd.py Plan diff command

GitHub Actions: .github/workflows/ci.yml — Python 3.10 + 3.12 (ruff, pytest); ansible-lint job on 3.12.

Live KVM regression is still manual (or geekohive) before touching MAC/DHCP/ISO chain.

Extension points

Add… Where
New tech platform New RodeoProfile in profiles/ + definition.yaml in data/platforms/ + register in profiles/__init__.py
New deployment_target config.py allowed list + up_cmd.py auto-detect + runner.py vars + success.py output + kvm_host role conditionals
New phase Add to profile.phases + run_phase() dispatch
New CLI command commands/*.py + register in cli.py
Host OS support install_deps.py + possibly kvm_host role conditionals
New workshop/demo Separate repo: rodeo-plan.yaml (type + deployment_target) + lab guide + host setup docs
Multi-host workshop fan-out rodeo/fleet/ + workshop.yaml — see Fleet; do not multi-host the phase engine

Fleet (multi-host workshops)

For N identical student/instructor KVM hosts, the laptop runs rodeo fleet over OpenSSH. Each remote still executes single-host rodeo up / doctor / status. Shipped F0–F2.1: JSON reports → fan-out → deploy/retry/access/diagnose.
Roadmap: F3 MCP; F4a AWS + Phase E single-host rodeo up --target aws MVP; next GCP → Vultr Bare Metal → Hetzner Cloud. Equinix is out of scope. See Fleet.

Document Audience
User guide Workshop operators deploying labs
Fleet Multi-host workshops (F0–F2.1 + F4a AWS MVP; roadmap F3, F4b–d)
ROADMAP.md Planned Terraform-for-labs features
CONTEXT.md Full project context for AI/developers
